Integrated Avionics Maintenance Trainer

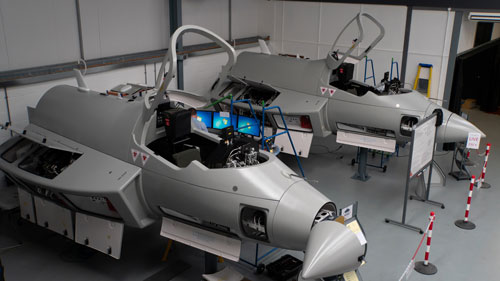

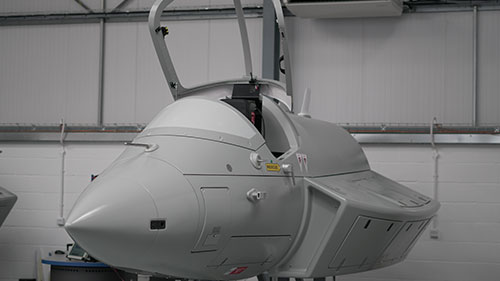

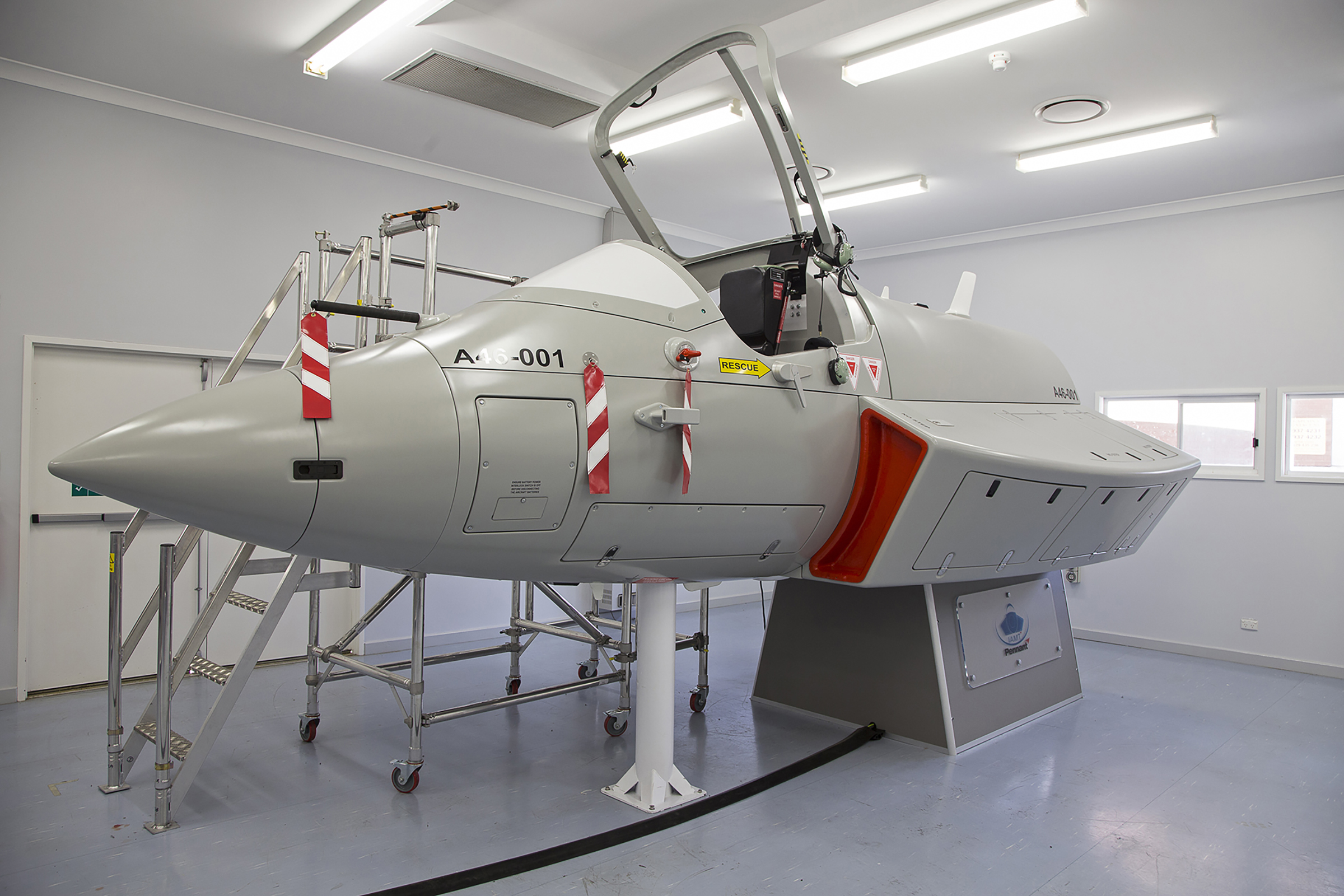

The Integrated Avionics Maintenance Trainer is an aircraft structure with a full size cockpit, with unglazed canopy, representative of a military aircraft combining modern digital displays with older analogue gauges to enable the student to experience a range of aviation technologies.

The cockpit utilises a common generic structure containing aircraft-specific fixtures and fittings for the LRUs in order to facilitate psycho-motor dependant training tasks. The trainer design is modular with each piece of simulated hardware presenting to the user an aircraft-like physical interface and containing an embedded I/O module to handle communication with the remotely executing software emulation to maximise flexibility of use and commonality of design.

Key features:

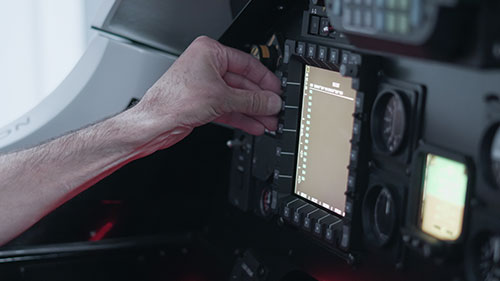

• Cockpit displays, controls and LRUs
• Ejection seat and safety devices
• Replaceable avionics LRUs and equipment housed within realistic avionic bays

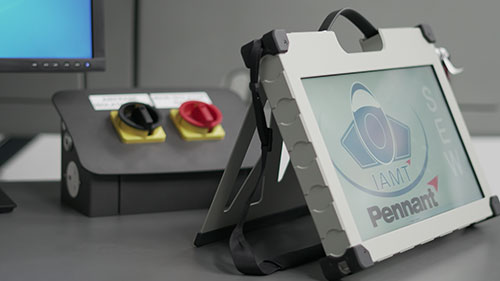

• Ruggedised tablet to connect virtual test equipment to the aircraft system emulations
• Instructor Operating Station enabling Integrated Training Management System (ITMS)
• IOS Cockpit display repeater screens
• Ability to Insert/Remove faults and conduct After Action Reviews
